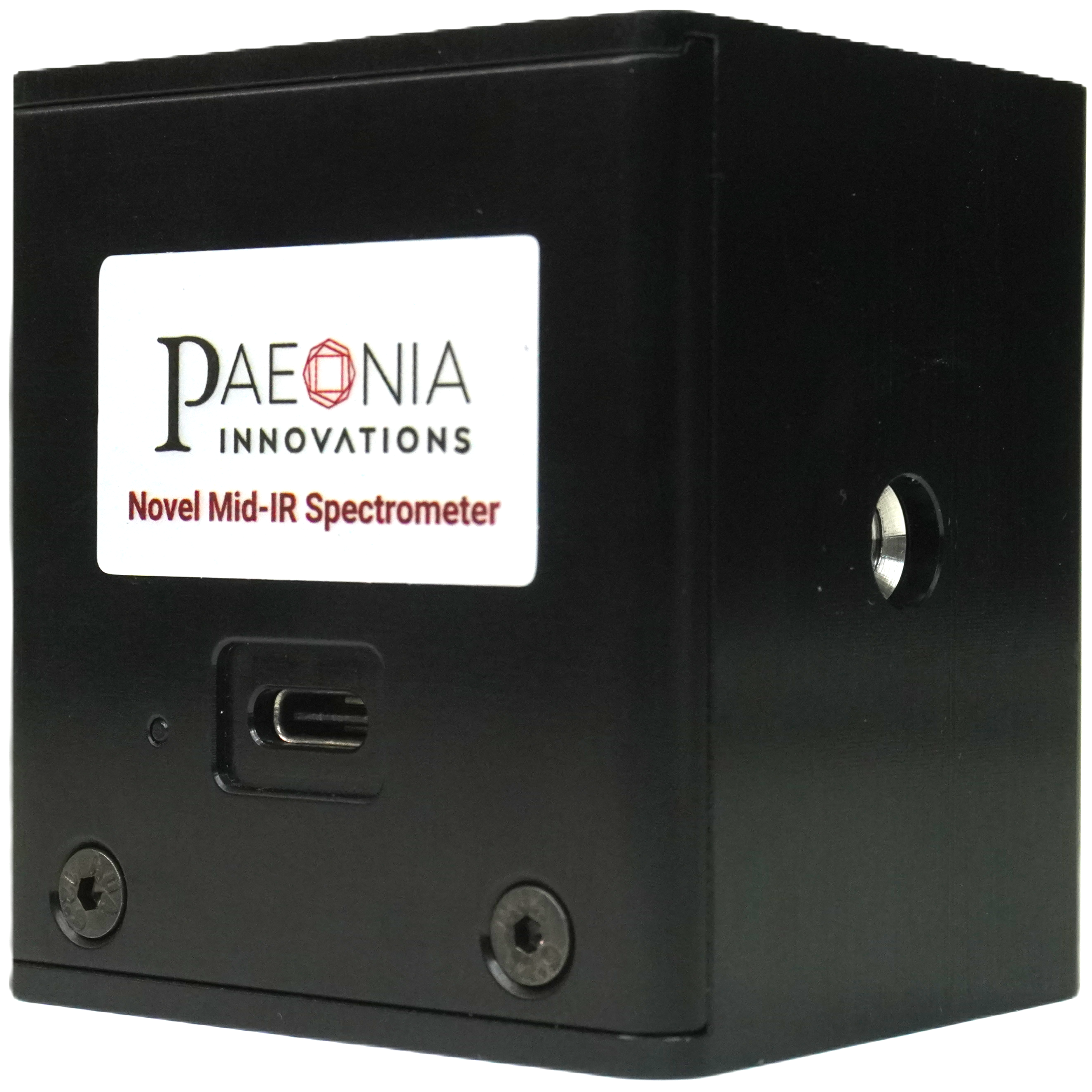

Novel Mid-IR Spectrometer
Miniaturized Spectrosopy
Robust and easy-to-use infrared spectrometer that fits in the palm of your hands for your real-time, chemical composition measurements.
Simple
Just plug in the module via USB to a computer with the software installed and you are good to go even in the field.
Production Introduction Video
Robust & Compact
At a size of 5 * 5.5 * 6 cm, the Novel Mid-IR Spectrometer is a fraction of the size of all traditional spectrometers. It does not use any moving components or fragile optical fibers, allowing you the freedom to decide where and how you want to use the spectrometer.
Mid-IR Spectroscopy
Dipole moments in molecular bonds can vibrate with energies that correspond to the mid-infrared region of light such that light passing through can be absorbed by the bonds that match in energy. As the dipole moments are affected by the bond and the surroundings, Mid-IR spectroscopy can be used to identify molecules and combined with measurement of the intensity to also quantify the concentration.
Kinetics, Molecular Structure & Thermodynamic
Researchers may use our spectrometer to expound the different molecular structures of the reaction species with potential kinetic and thermodynamic pathways, enabling green synthesis, new catalysts, molecules and reactions.
Inline Process Monitoring
Process industries such as (pharmaceutical, specialty chemicals, petrochemicals, chemicals, food and beverage) industries using liquid chemicals in their processes, can use our spectrometer to monitor reactions, reduce cycle times, maximize yield, reduce wastes, improve sustainability, control quality and scale up reactions.
Featured Products

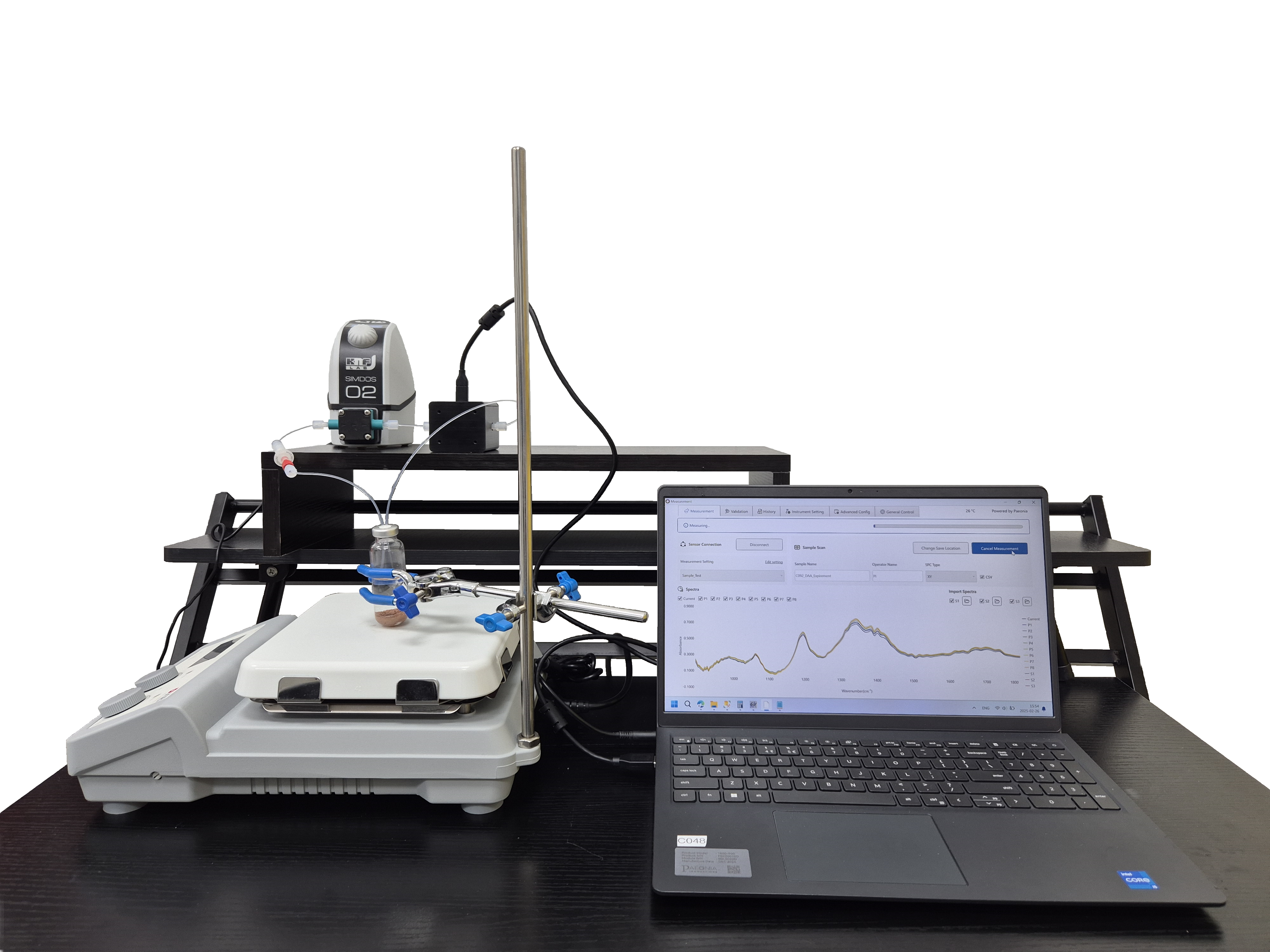

Reaction Monitoring
Product Specifications
| Specification | Details |
|---|---|
| Wavenumber Range | 900 cm⁻¹ to 3500 cm⁻¹ |
| Size | 5 cm x 5.5 cm x 6cm |
| Weight | 450 g |
| Response Time | 0.3s |
| Power Consumption | 600 mW (5V DC via USB-C) |
| Electrical Connection | Single USB-C to power device and transmit data |
| Void Volume | 0.1 mL |
| Back Pressure | 0.3 bar at 30 mL.min⁻¹ water flow |
| Pressure Rating | 0 to 50 bar absolute |
| Tube Fitting | 1/4"- 28 flat-bottom |
| Tube Size | OD of 1/8" or 1/16" |
| Chemicals Temperature | -15°C to 60°C |
| Ambient Temperature and Humidity | 0°C to 60°C; 0% RH to 90% RH |
| Wetted Materials | SS316L, FFKM, Si, Ge, Au |
| Pathlength Options | 20 μm, 100 μm or 200 μm |
| Residence Time Distribution | Build-in function to do residence time distribution and live concentration measurement |
| Historical Information | Immutable records of past measurements and data |
| Self Test Function | Auto test instrument signal-to-noise ratio |
| Data Format | SPC or CSV files |
| Software Operating System | Microsoft Windows 10 & 11 |
Get In Touch
Reach out to us at [email protected] to get a quotation, learn more about our offerings or have more detailed information.
